3×3 Magnetic Pop Up Exhibition Stand
Description
A 3×3 magnetic pop up exhibition stand provides a wide, portable branded backdrop for exhibitions, trade shows, conferences and promotional events.
The reusable collapsible frame uses magnetic support bars to hold separate custom printed graphic panels in position. Choose a straight frame for a flat display wall or a curved frame for a shaped exhibition backdrop.
The 3×3 system provides three main front graphic panels plus two printed end panels, giving your business a substantial display area for branding, product imagery and promotional messages.
Part of our Magnetic Pop Up Displays range.
Why Choose a 3×3 Magnetic Pop Up Exhibition Stand?
The 3×3 format is suitable for exhibitors who need a prominent backdrop while retaining a collapsible system that can be transported and reused.
- Wide exhibition backdrop for larger branding
- Choice of straight or curved frame
- Three main front graphic panels
- Two printed end panels
- Reusable collapsible frame
- Magnetic bars for positioning the panels
- Starter and complete kit options
- Replacement graphic panels available
- Wheeled transport case with complete kit
- Two LED display lights with complete kit
- UK delivery available
Always select the correct straight or curved configuration before preparing your artwork because the assembled dimensions and panel widths are different.
Choose Your 3×3 Magnetic Pop Up Stand Configuration

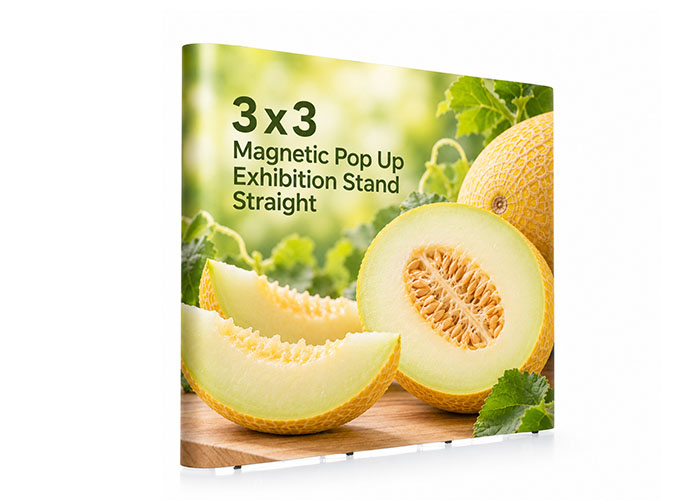

Straight 3×3 Magnetic Pop Up Stand
The straight configuration creates a flat branded exhibition wall.
Its assembled hardware dimensions are approximately:
- Height: 2240mm
- Width: 2700mm
- Depth: 325mm
The straight display uses:
- Three front straight graphic panels
- Two printed D-end panels
The shallow floor depth makes the straight system suitable for positioning against a shell scheme wall or stand boundary.

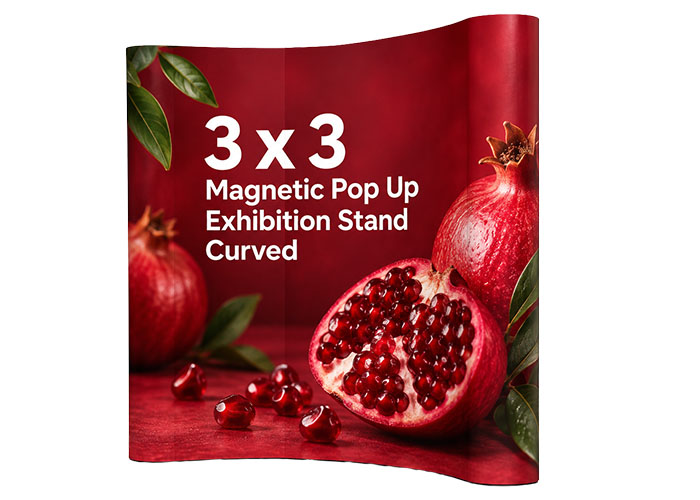

Curved 3×3 Magnetic Pop Up Stand
The curved configuration creates a gently shaped exhibition backdrop that projects further into the stand area.
Its assembled hardware dimensions are approximately:
- Height: 2240mm
- Width: 2540mm
- Depth: 720mm
The curved display uses:
- Three front curved graphic panels
- Two printed D-end panels
The curved version is slightly narrower than the straight frame but requires considerably more floor depth.
Measure the usable width, height and depth of your exhibition space before selecting the frame shape.
3×3 Magnetic Pop Up Exhibition Stand Specifications
| Specification | Straight display | Curved display |
|---|---|---|
| Assembled height | 2240mm | 2240mm |
| Assembled width | 2700mm | 2540mm |
| Assembled depth | 325mm | 720mm |
| Main front panels | Three straight panels | Three curved panels |
| End panels | Two D-end panels | Two D-end panels |
| Starter-kit packed size | 900 × 220 × 230mm | 900 × 220 × 230mm |
| Starter-kit weight | Approximately 12kg | Approximately 12kg |
| Complete-kit packed size | 980 × 600 × 400mm | 980 × 600 × 400mm |
| Complete-kit weight | Approximately 26.5kg | Approximately 26.5kg |
Custom Printed Magnetic Graphic Panels
The artwork is printed across separate semi-rigid PVC panels that attach to the magnetic frame and align to create the complete exhibition backdrop.
The graphic specification is:
- Material: 400-micron pop up PVC
- Front straight panel: 2225 × 733mm
- Front curved panel: 2225 × 673mm
- D-end panel: 2225 × 673mm
Your printed design can include:
- Company logos and brand colours
- Product and service information
- Promotional messages
- Product photography
- Website and contact details
- QR codes and calls to action
Avoid positioning small text, faces, logos or other important design elements directly across the panel joins.
Request the correct straight or curved artwork template before preparing the final print file.
How the 3×3 Magnetic Pop Up Stand Works
The collapsible frame expands to create the main exhibition display structure.
Magnetic support bars attach to the frame. Graphic hangers and kickers then position the printed panels across the front and ends of the display.
The basic setup process is:
- Expand and secure the collapsible frame.
- Attach the magnetic support bars.
- Fit the graphic hangers and kickers.
- Position the three front graphic panels.
- Fit the two printed end panels.
- Align the panel edges across the display.
- Attach the display lights where included.
After the event, remove and roll the graphic panels before collapsing the frame for transport and storage.
Starter Kit or Complete Kit
3×3 Starter Kit
The starter kit includes the main display hardware:
- Collapsible 3×3 pop up frame
- Magnetic support bars
- Graphic hangers and kickers
- Roll of magnetic fixing tape
The starter kit does not include printed graphics, a transport case, tabletop or display lights unless they are added separately.
3×3 Complete Kit
The complete hardware kit includes:
- Collapsible 3×3 pop up frame
- Magnetic support bars
- Graphic hangers and kickers
- Roll of magnetic fixing tape
- Wheeled transport case
- Case tabletop
- Two 10W LED display lights
A teak-effect tabletop is supplied as standard. A black tabletop may be available on request.
Printed graphic panels should be selected separately unless your chosen product option clearly states that they are included.
Wheeled Case and Tabletop
The complete kit includes a wheeled transport case for storing and moving the collapsed frame, magnetic components and rolled graphic panels.
The supplied tabletop allows the case to be converted into a temporary exhibition counter after the display has been unpacked.
Check the selected product option to confirm whether the following are included:
- Wheeled transport case
- Teak-effect or black tabletop
- Printed case graphic
- Two 10W LED display lights
A printed case graphic is not included unless it is specifically selected.
Replacement Graphics for a 3×3 Magnetic Pop Up Stand
Replacement printed panels can be supplied for compatible 3×3 magnetic pop up frames.
Before ordering replacement graphics, confirm:
- The exact frame model
- Whether the frame is straight or curved
- The assembled dimensions
- The number of front and end panels
- The width and height of each panel
- The graphic hanger and kicker arrangement
A straight 3×3 panel will not fit the curved system because the front-panel widths are different.
Please provide clear photographs, measurements or an existing artwork template before replacement graphics enter production.
Artwork Requirements
Request the correct artwork template for your chosen frame before preparing the final design.
Keep important content within the recommended safe areas and away from:
- Panel joins
- Trimmed panel edges
- Graphic hangers and kickers
- Areas wrapping around the ends of the frame
The design should be prepared as one coordinated backdrop while allowing for the individual front and end panel sections.
Is the 3×3 Display the Right Size?
Choose the 3×3 system when you need a wide exhibition backdrop with more space for branding, product photography and promotional information.
The straight option provides the widest front-facing footprint and requires less floor depth.
The curved option creates a shaped display but projects further into the exhibition area.
For smaller systems or other available sizes, browse the complete Magnetic Pop Up Display range.
Measure the permitted stand width, height and floor depth before ordering.
Planning Your Exhibition
Before ordering, check the organiser’s requirements covering stand dimensions, shell scheme boundaries, electrical access, setup times and venue deliveries.
Businesses exhibiting at NEC Birmingham can also review the official NEC exhibitor information before attending an event.
Frequently Asked Questions
What are the assembled dimensions?
The straight frame measures approximately 2700mm wide, 2240mm high and 325mm deep. The curved frame measures approximately 2540mm wide, 2240mm high and 720mm deep.
How many graphic panels are supplied?
The standard graphic layout uses three main front panels and two printed D-end panels.
Are the straight and curved graphic panels the same size?
No. Straight front panels measure approximately 2225 × 733mm, while curved front panels measure approximately 2225 × 673mm.
What does the complete kit include?
The complete hardware kit includes the frame, magnetic bars, hangers, kickers, magnetic tape, wheeled case, tabletop and two 10W LED display lights. Printed graphics must be selected separately unless the product option states otherwise.
Can I order replacement graphic panels?
Yes. Replacement panels can be supplied after the exact frame shape, dimensions and panel arrangement have been confirmed.
Do you deliver throughout the UK?
Yes. Jenwill Printers supplies 3×3 magnetic pop up exhibition stands with UK delivery.
Order Your 3×3 Magnetic Pop Up Exhibition Stand
Select your preferred straight or curved frame, starter or complete kit and required printed graphics before placing your order.
For help confirming the correct configuration, provide your available stand dimensions, event date and delivery postcode.
